Pipe Protectors

Pipe protectors are essential for safeguarding vulnerable building services from impacts by vehicles and machinery in high-traffic environments. The most commonly damaged infrastructure includes stormwater downpipes (PVC or thin-walled metal pipes running down building exteriors), fire sprinkler system pipes and risers required for building compliance, electrical conduits and cable runs supplying power to car park systems, water supply pipes and meters, gas lines and connections, data and telecommunications cabling, and hydraulic system pipes in loading docks and industrial facilities.

In car parks, pipes are typically exposed along walls, columns, and at ground levels where reversing vehicles, delivery trucks, and car doors frequently strike them. Warehouses face additional risks from forklifts, pallet jacks, and loading equipment manoeuvring in tight spaces near building walls. A single impact to an unprotected downpipe can cost thousands in emergency repairs, water damage remediation, and business interruption, while damage to fire system pipes may result in building code violations and insurance complications.

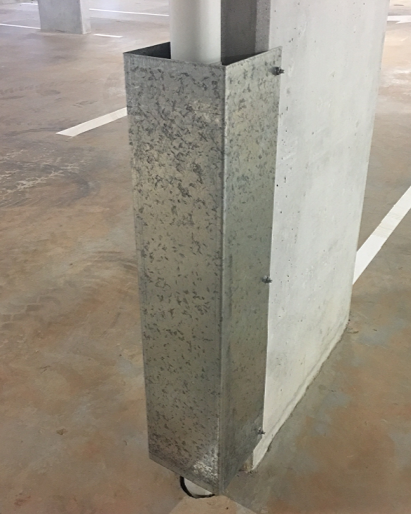

Classic Architectural Group supplies custom-manufactured pipe protectors in galvanised steel with optional powder coating, designed to absorb and deflect impact away from vulnerable pipes and cables. Our protectors are wall-mounted with pre-drilled holes for straightforward retrofit installation on existing structures across Australia, preventing costly damage without encroaching on valuable parking or working space.

The choice between galvanised and powder-coated pipe protectors depends on your environment, visibility requirements, and maintenance preferences. Both options provide excellent protection, but each offers distinct advantages for different applications.

Galvanised pipe protectors are made from hot-dip galvanised steel, providing superior corrosion resistance without additional coating. This finish is ideal for aggressive environments, including coastal car parks exposed to salt air, industrial facilities with chemical exposure, high-humidity areas like underground car parks, and outdoor installations subject to weather extremes. Galvanised protectors require virtually zero maintenance and won’t chip or peel like painted surfaces, making them the most cost-effective long-term solution. The natural silver-grey appearance suits industrial aesthetics but may be less visible in low-light conditions.

Powder-coated pipe protectors (typically high-visibility safety yellow over galvanised steel) provide maximum visibility to improve driver awareness in car parks, loading zones, and pedestrian areas. The bright yellow finish clearly marks protected zones, reducing accidental impacts. Powder coating also allows colour matching to building schemes or corporate branding requirements. The galvanised steel base ensures that even if the powder coat is scratched, the underlying protection prevents rust. These are preferred for retail car parks, commercial buildings, and facilities where aesthetics and visibility matter.

Classic Architectural Group manufactures pipe protectors in both finishes, custom-sized to your specific pipe diameters and installation requirements. Our 3mm galvanised steel construction ensures maximum impact resistance regardless of finish choice, with professional installation services available Australia-wide.

Pipe protectors are specifically designed for easy retrofit installation on existing structures without requiring building modifications or pipe relocation. This makes them an ideal solution for protecting vulnerable infrastructure in operational car parks, warehouses, and commercial facilities where downtime must be minimised.

Installation typically involves wall-mounting the protector around the exposed pipe using pre-drilled holes and mechanical fixings. The process includes measuring the pipe diameter and determining the required projection distance from the wall, selecting appropriately sized protectors (standard sizes accommodate pipes from 50mm to 300mm diameter), positioning the protector to fully shield the pipe while maintaining adequate clearance for pipe expansion and maintenance access, and fixing through pre-drilled mounting holes into masonry or concrete walls using appropriate anchors for the substrate.

Most installations take 30-60 minutes per protector, depending on wall conditions and access. Unlike embedded or cast-in protection methods, wall-mounted pipe protectors don’t require core drilling into structural slabs, coordination with building services during construction, or expensive formwork and concrete work. This retrofit capability means protection can be added immediately to high-risk areas without waiting for major refurbishment projects.

For corner installations or pipes mounted on building corners, 45-degree flanged protectors are available. Custom configurations can accommodate multiple pipes, unusual pipe routes, or integration with existing column protection systems. Classic Architectural Group provides site assessment services to determine optimal protector sizing and placement, manufactures custom pipe protectors to exact specifications, and offers professional installation across Australia with minimal disruption to your operations.
