Making the Most of Limited Space with Compact Bike Parking
With the rise of cycling as a preferred commuting option, many employers and local governments are encouraging active transport for its health, financial, and environmental benefits.
The NSW Government is reportedly exploring incentives for people using e-bikes and scooters, while the City of Adelaide offers rebates of up to $500 as part of a sustainability incentives scheme.
As cities become busier and greener, and cycling becomes a more popular means of daily transportation, buildings and car parks often have limited bike parking spaces. Traditional solutions, such as hoop racks or multi-bay racks, allow cyclists to secure their bikes with a keyed lock, yet they are constrained by floor space, fill up quickly, and can be prone to theft, often resulting in cluttered streets or shared areas.
In this article, we’ll explore the growing demand for dynamic, compact bike parking, including multi-tier dynamic bike racks, which optimise space while ensuring easy, safe access for users.
What Are Multi-Tier or Two-Tier Bike Racks?
Multi-tier or two-tier bike racks are designed to optimise vertical space rather than floor space, effectively doubling parking capacity without taking up extra floor area.
A compact bike parking solution, these dynamic bike racks come in a variety of types:
- Gas-assist bike racks: Lift bikes to the upper tier with minimal effort.
- Sliding rail systems: Easily access upper or lower tiers by sliding bikes along rails.
- Vertical bike storage: Stack bikes vertically to maximise compact spaces.
Designed for convenient access, secure storage, and compliance with Australian Standards, multi-tier bike racks often feature dynamic elements, such as swivelling, stacking, or adjustable tiers, making them a versatile solution for high-density environments.
9 Benefits of Multi-Tier Bike Parking Systems
For commercial, community, and high-density applications, including offices, apartment buildings, universities, shopping centres, and transport hubs, efficient, secure, and space-saving bike parking solutions and end-of-trip facilities are essential.
Key benefits of multi-tier bike racks:
- Maximise bike parking capacity: Fit twice as many bikes in the same allocated space.
- Convenience & accessibility: Dynamic features make it easy for users to park and retrieve bikes, even in tight spaces.
- Smart use of height: Utilises vertical space that would otherwise go unused.
- Cost-effective: Adds capacity without requiring costly extensions or expansions.
- Visually aesthetic: Keeps end-of-trip areas tidy, professional, and inviting.
- Enhanced security: Integrated keyed locks, ground anchors, or secure rails reduce the risk of theft or vandalism.
- Achieves compliance requirements: Ensures compliance with Australian Standards and local council regulations.
- Promotes health & well-being: Encourages cycling as a primary means of transport.
- Supports sustainable transport initiatives: Helps organisations meet sustainability goals by providing viable driving alternatives.
Providing both direct and indirect benefits to users, building owners, and facility managers, multi-tier bike racks maximise space, enhance the user experience, and support sustainability initiatives.
Staying Compliant: Understanding AS 2890.3 for Bike Parking Facilities
Adhering to the Australian Standards ensures architects and builders can design bike parking facilities that are user-friendly, efficient, and legally compliant. AS 2890.3 specifies requirements for the construction of buildings and structures, including provisions for bike storage areas.
With sustainability becoming a key priority for new developments, many local councils now require compliant bike storage as part of planning approvals. Residential, commercial, and industrial projects can even earn extra points toward their Green Star ratings by including bike storage and end-of-trip facilities that meet AS 2890.3 standards.
An overview of Australian bike rack standards, according to AS 2890.3:2015:
- Location & Access: Bike storage areas should be easily accessible and conveniently located close to building entrances and amenities.
- Design & Layout: Accommodate various bicycle types and include at least 20% horizontal ground-level bike parking for users unable to lift their bikes.
- Spacing & Dimension: Ensure a bicycle spacing envelope for locking and parking a standard bicycle horizontally or vertically, with obstacle-free access aisles.
- Security & Compliance: Construct racks from high-security materials to secure the bike in place, with the ability to lock at least one wheel and frame directly to the rack with a D-lock.
- Installation & Fixing: Secure racks to the ground or structure to prevent movement or theft.
- Signage & Markings: Provide clear signage and markings to indicate bike storage areas, designated parking spaces, and pathways.
- Maintenance & Inspection: Ensure the ongoing functionality and safety of bike storage facilities by promptly repairing any defects or damage.
For a more detailed outline, read our article on the essentials of bicycle parking compliance or download our Bike Storage Compliance Guide.
Ensuring complete compliance and peace of mind, Classic Architectural Group’s dynamic bike rack range is AS 2890 compliant and designed to exceed these standards.
Practical Design and Usability Tips for Architects and Builders
Designing compliant and user-friendly bike parking facilities requires careful consideration of both form and function.
According to AS 2890.3:2015, the Bicycle Spacing Envelope specifies the minimum clearance area required for a standard bicycle, ensuring easy, obstruction-free parking and locking. The recommended envelope dimensions are 1800mm (length) x 1200mm (height) x 500mm (width).
For multi-tier bike racks, additional design factors apply, including:
- A lift-assist mechanism must be incorporated to allow easy access to the upper tier
- An increased bicycle spacing envelope width of 700mm for upper-level bikes, if adjacent tiers are not staggered
- A minimum access aisle width of 2000mm behind all bike parking spaces
- A minimum ceiling height of 2800mm to ensure vertical clearance
Beyond compliance, usability and durability are key. Bike storage systems should be user-friendly, safe, and durable for busy environments.

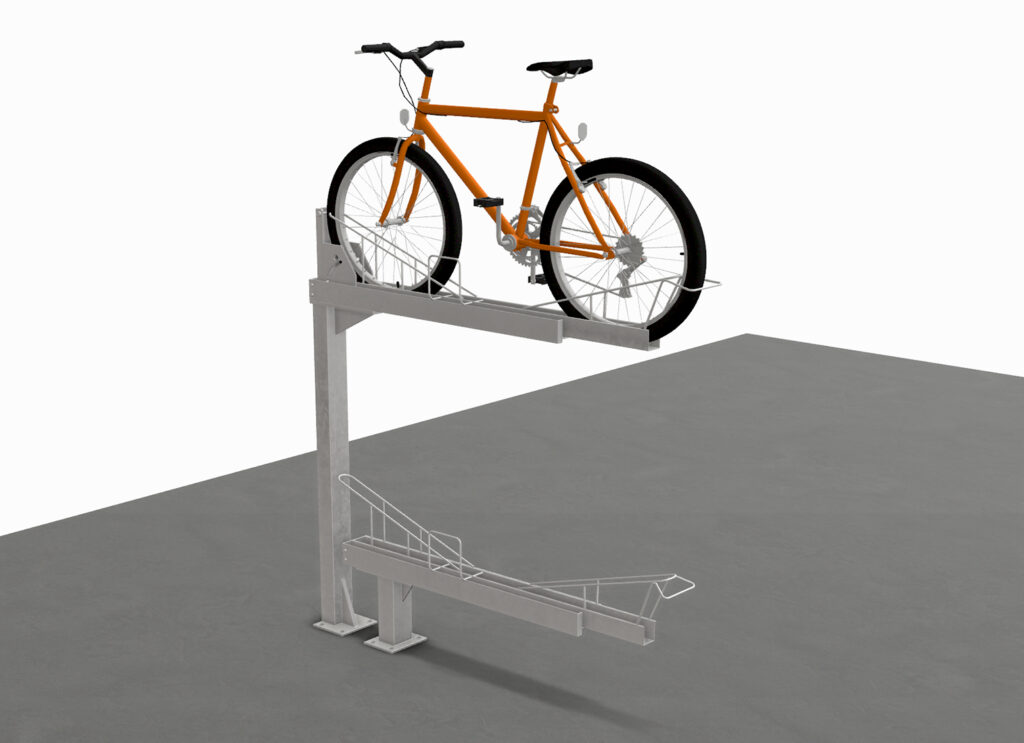

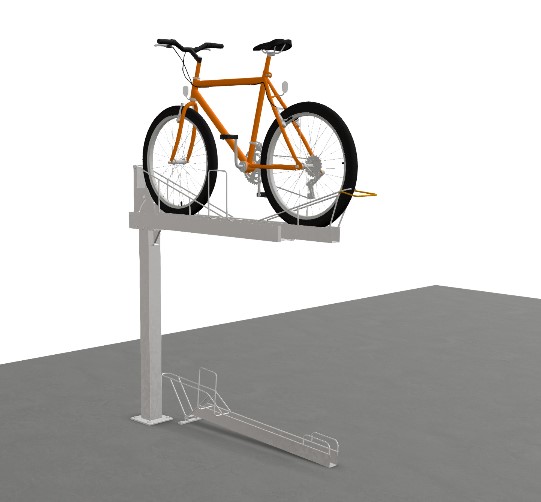

At Classic Architectural Group, our EziStax™ (below left) and EziStax™ Max (below right) two-tier bike racks are engineered with these principles in mind. Both feature a sliding rail and gas-assist upper tier for effortless lifting, making compact bike parking strain-free and straightforward.
Because the EziStax™ Max (pictured above right) also has a sliding or ‘dynamic’ bottom tier, the bicycle spacing envelope width can be reduced from 500mm to 400mm, allowing for even greater space efficiency in compact areas, perfect for projects aiming to achieve a 6 Star Green Rating.
A ‘dynamic’ bike rack uses moving parts, like sliding or lifting arms, to make loading bikes easier in tight spaces. Under AS2890.3, dynamic racks can be spaced at 400mm instead of the standard 500mm – without compromising compliance. Perfect for high-density bike rooms where every millimetre matters.

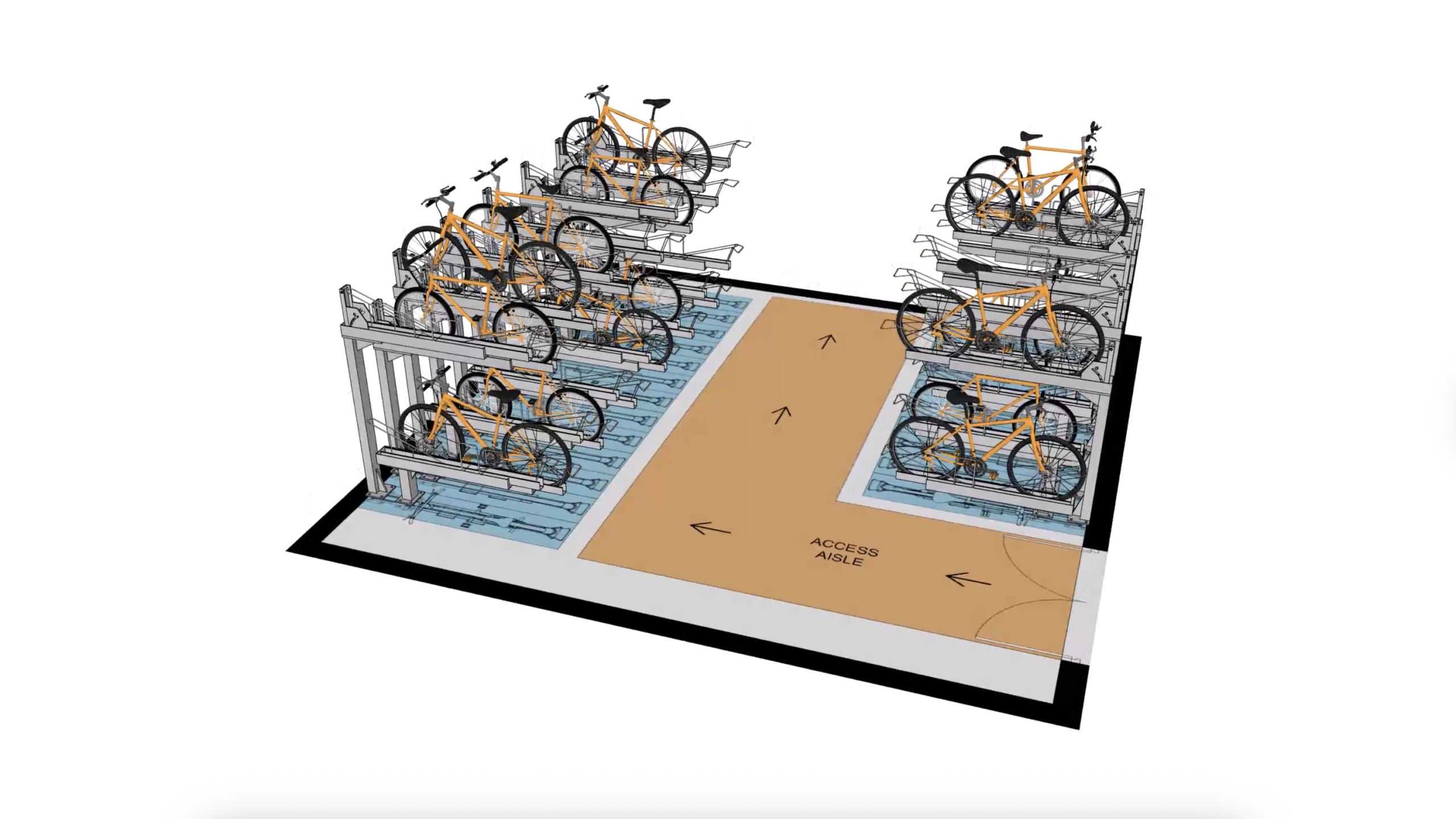

To streamline your planning process, try our free Ezi360™ Bike Storage Planner. It helps you design compliant layouts that align with Australian Standards while factoring in your available space, storage needs, and recommended product configurations.
Frequently Asked Questions About Multi-Tier Bike Parking for Compact Spaces
How ergonomic is two-tier bike parking? Are the top racks hard to use?
To access the top tier, simply pull out the sliding base rail until it reaches its pivot point, then fold it down for easy bicycle positioning. The system also includes a gas-assisted lift, ensuring smooth, effortless operation for users of all abilities.
Are they secure? Is there any risk that the bike on the top tier might tip or fall over?
Yes, our EziStax™ and EziStax™ Max are designed for maximum stability and security, using Security Level C racks.
Each rack allows users to secure their bicycle frame and at least one wheel using their own lock, preventing theft or movement.
Will multi-tier bike racks fit in tight or irregular spaces?
Yes, our dynamic, multi-tier bike racks are specifically engineered to maximise space efficiency, even in small or irregular spaces.
You can use our free Ezi360 Bike Storage Planner Tool to plan and design compliant layouts tailored to your project’s exact dimensions and storage requirements.
Do they comply with AS 2890.3:2015 standards?
Alongside compliant installation and fixing, our dynamic bike racks adhere to the Australian Standards for clearance and ease of use, meeting all requirements for spacing, clearance, safety, and accessibility.
Is it easy to install two-tier bike racks?
Yes. Both our EziStax™ and EziStax™ Max two-tier bike racks are supplied as knock-down kits for easy on-site assembly.
They’re designed for surface-mounted applications, making them ideal for both new and retrofit projects.
Supporting you from design to installation, our team can assist with all installation requirements.
Stacked for Success: Recent Projects
LIV Albert, VIC
Housing 498 apartments in a sustainability-focused build-to-rent development, LIV Albert has achieved an impressive 8.2-star average NatHERS rating, with a 5-star Green Star rating well within reach.
Classic Architectural Group supplied a comprehensive suite of specification projects for this landmark project, including the EziStax™ Max two-tier bike rack system to optimise storage space and promote active transport for cleaner, greener living.

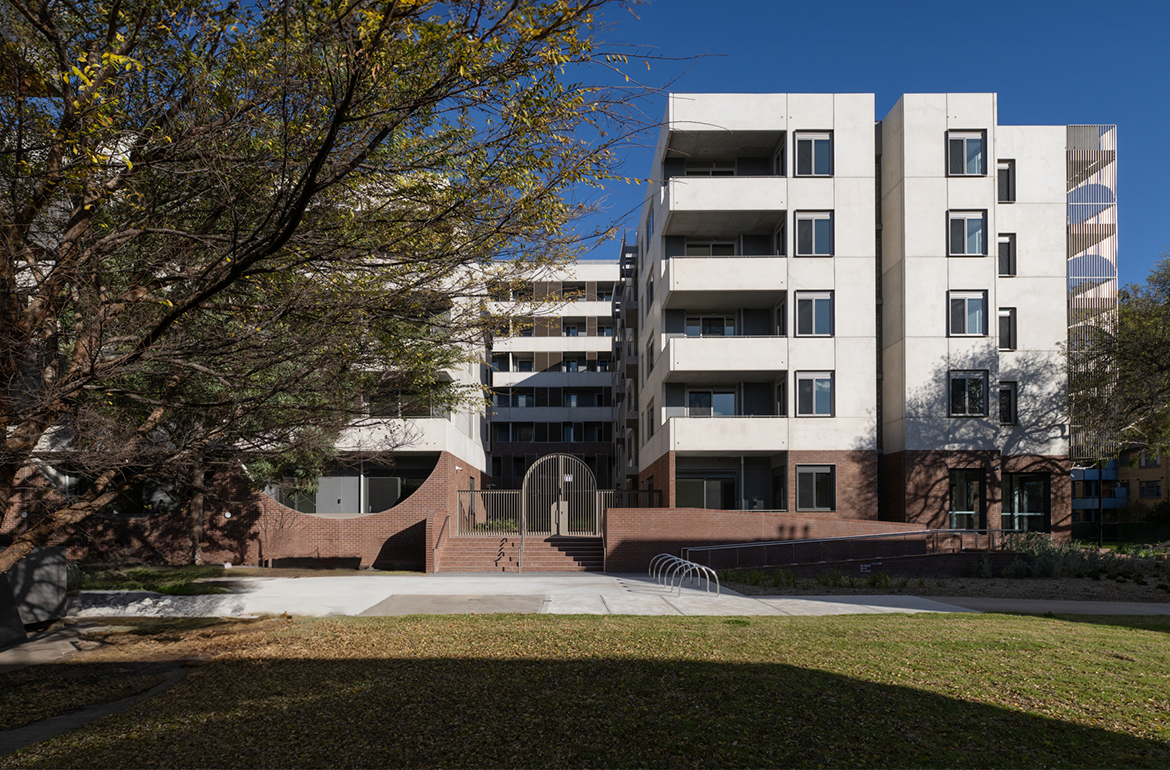

Homes Victoria, North Richmond, VIC
Supporting safer, more connected community living, the Homes Victoria redevelopment in North Richmond holds a 5-star Green Star rating and an average 7-star NatHERS rating, setting a new benchmark for sustainable residential design.

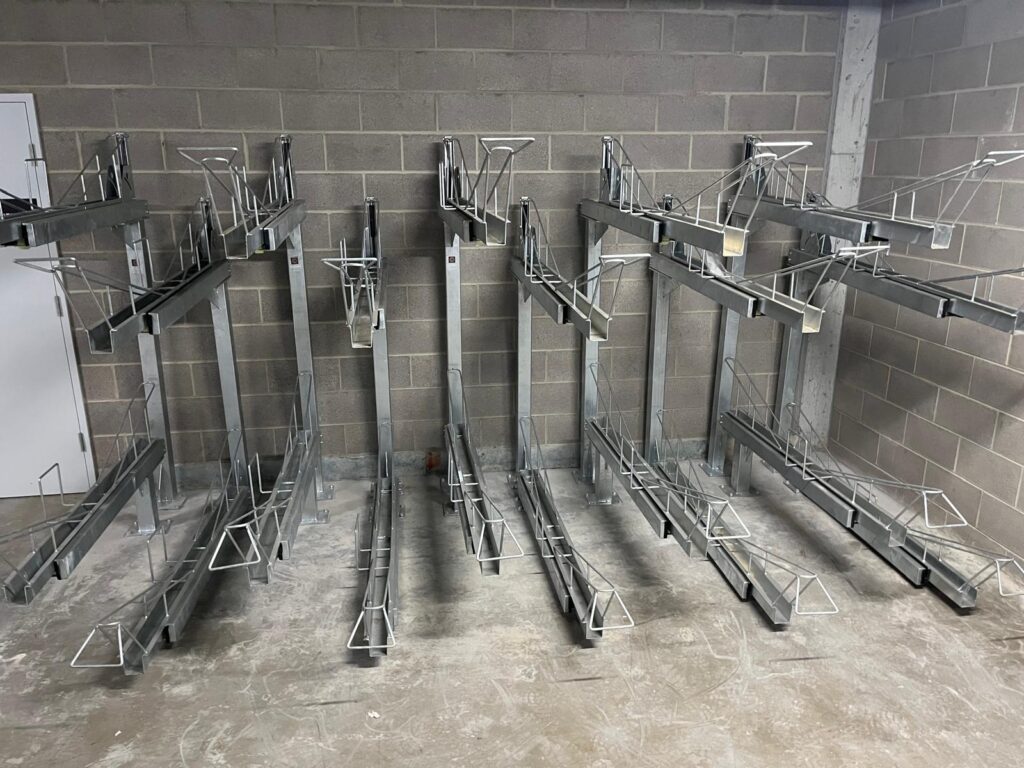

In addition to supplying floor, stair, and car park safety solutions, Classic Architectural Group installed the EziStax™ Max multi-tier bike racks to maximise bicycle storage while ensuring accessibility and user convenience.
A Rack Above the Rest—Choose Classic Architectural Group
A smart and compliant choice, multi-tier bike racks are the perfect solution for maximising parking capacity without compromising space.
Beyond compact layouts, two-tier systems make it easier for modern businesses and organisations to promote health, well-being, and sustainability initiatives—all without the need for costly expansions.
If you’re considering a dynamic multi-tier bike parking system for your project, new or retrofitted, Classic’s EziStax™ two-tier and EziHold™ swivel systems come with end-to-end support, from design to installation.
To simplify your planning and approval process, make use of our free Ezi360 Bike Storage Planner Tool, alongside our CAD/ Revit drawings, to design compliant configurations meeting your project’s exact requirements.
For a tailored quote or more information about our products, please contact us today.
