- Aluminium – hard wearing
- Carpet applications
- Interior use
- Ribbed polymer insert

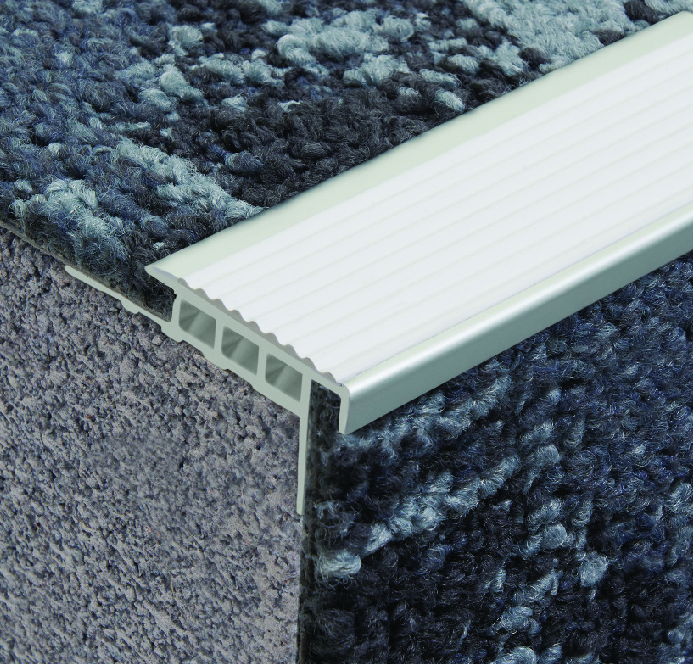

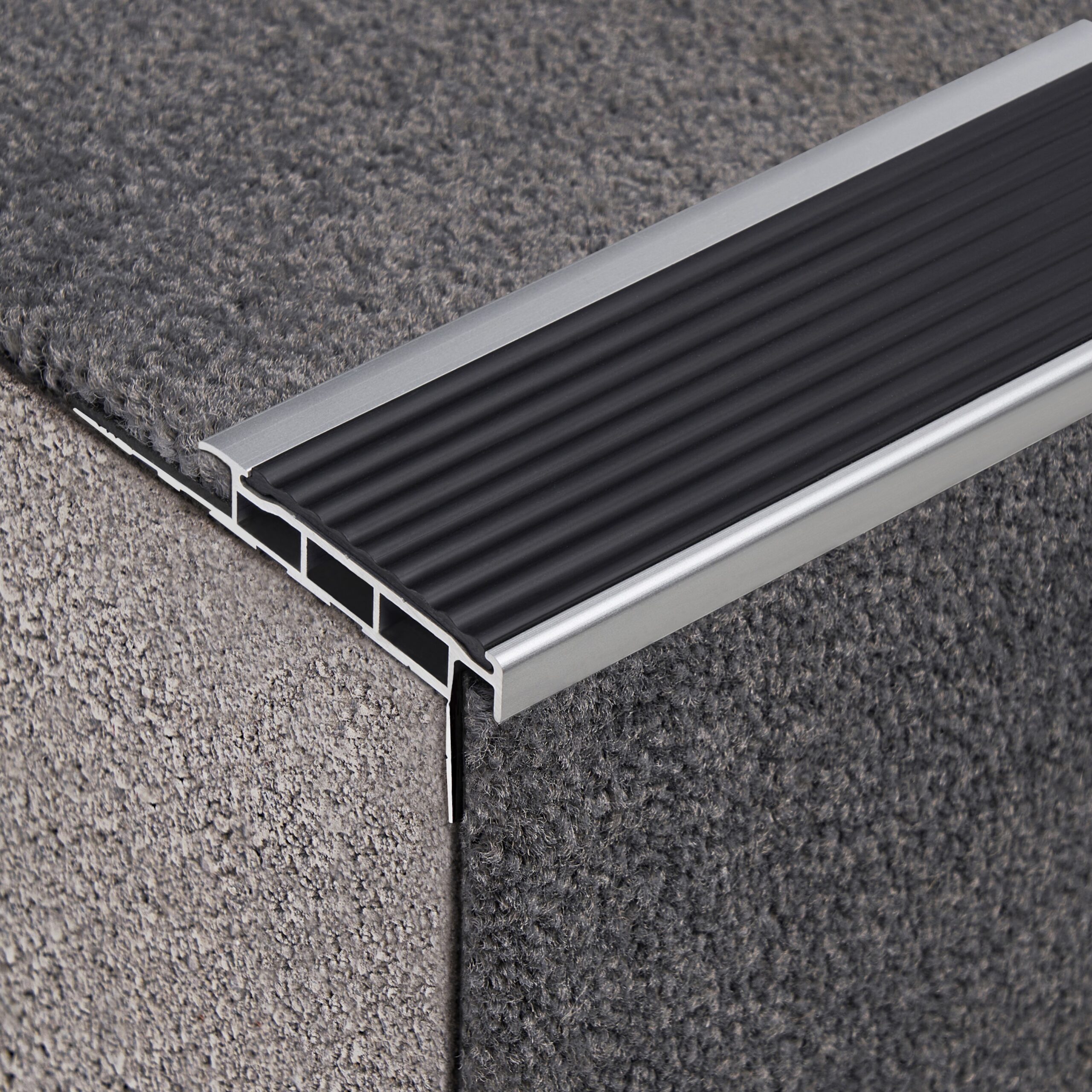

Aluminium Safety Stair Nosing for Carpet Applications
Specifically developed for carpeted area applications, the carpet application range of Tredfx stair nosings look great, work well and easy to install. The PBD143 profile is designed to suit 8-10mm carpet, and be pre-fitted before the carpet is laid for a flush look. The range provides a compliant and effective interior safety application. A huge offering of profile and insert color combinations makes them suitable for use with any color carpet.
Application
Carpet (accepts carpet thickness of 8-10mm)
Visualise Your Product In 3D
Compliance Tip – Be sure to check that your selection achieves the required LRV contrast to satisfy Australian Standards. We can assist you with LRV testing and compliance advice.
Technical Specifications
- Fire Rating Critical Radiant Flux is 7.8 kW/m2 and Smoke Development Rate is 234 %/min
- Slip Rating P3
- Application Carpet (accepts carpet thickness of 8-10mm)
- Length 6200mm
- Supply includes Cut to size. CA290 adhesive and polymer insert.
- LRV Results Luminance Results - Stair Nosings
Downloads and Guides
Other Features
-
LRV (Light Reflectance Value) available
-
P3 Slip resistance rating
-
Fire test report available
Technical Drawings
