- Wall Mounted Triangular Cradle
- 1 Bike Capacity
- Black Powder Coated

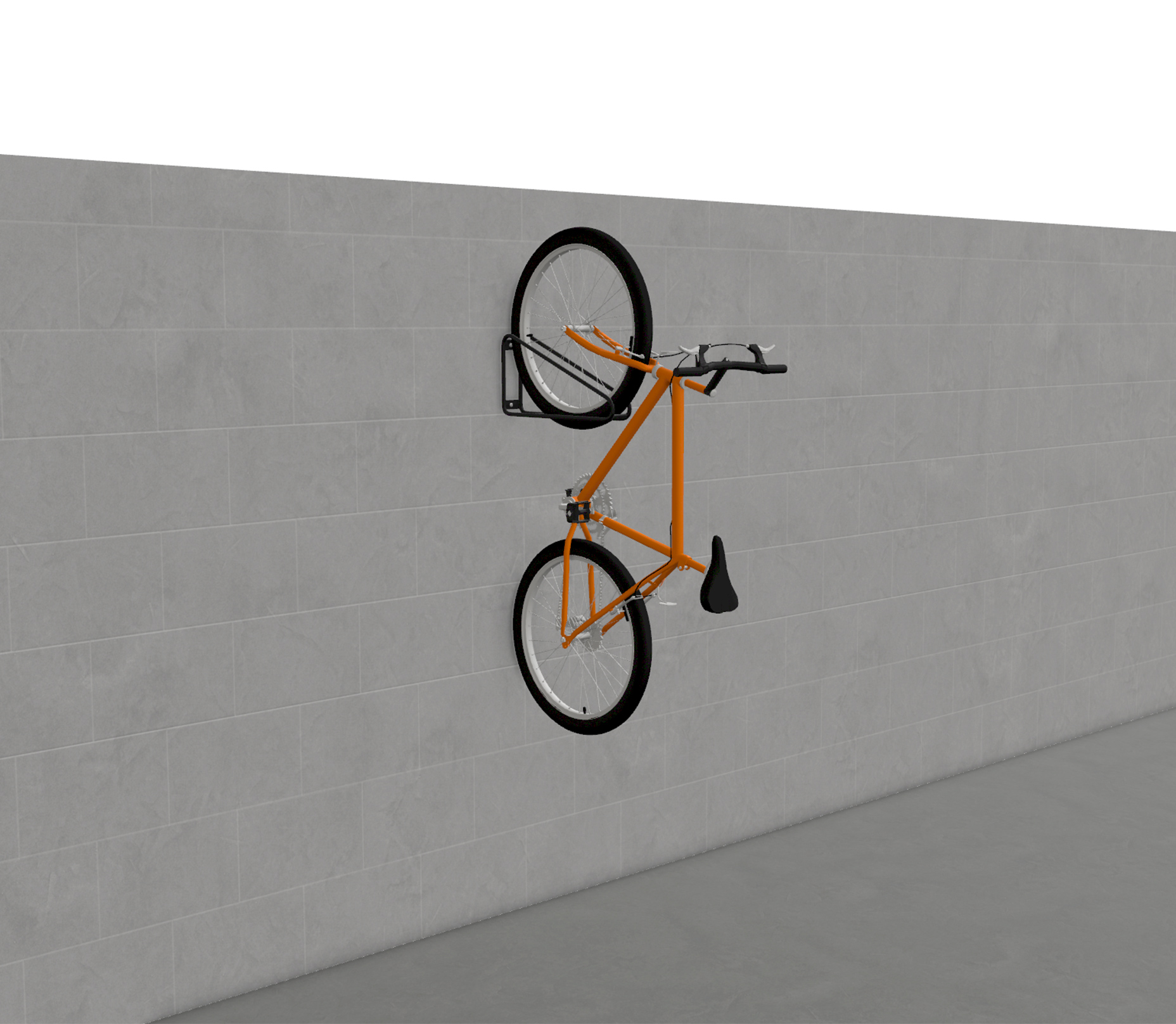

Classic EziHold® Tri Wall Mounted Triangular Cradle Bike Rack
The EziHold® Tri Wall Mounted is a high-density bike storage system designed for maximum space efficiency. It can be installed individually or in larger clusters, making it ideal for car parks, bike storage rooms, and other indoor or covered areas. The EziHold® Tri Wall Mounted features a gentle cradle for the front wheel, ensuring bike safety and easy access for parking. It can be mounted directly onto existing walls or opt for the EziHold® Tri Post Mounted for added versatility.
Application
Wall Mount
Recommended For
Ideal for end of trip facilities or bike rooms
Ezi360® Bike Storage Planner
Create layouts that align with Australian Standards – in 3 easy steps.
Plan with Ezi360 ®
Visualise Your Product In 3D
Technical Specifications
- Application Wall or post mount
- Length 595mm
- Width 97mm
- Height 301mm
- Material Black powder coated
- Spacings 500mm if spacings are offset, 700mm if not offset
- Class Security Level C rack, according to AS 2890.3:2015
Downloads and Guides
Other Features
-
Powder coated (optional)
-
Weather resistant
Technical Drawings
